Threshold and Availability for Mail Delivery

Add Threshold and Availability for Mail Delivery

Click Admin > Configuration Profiles > Threshold and Availability.

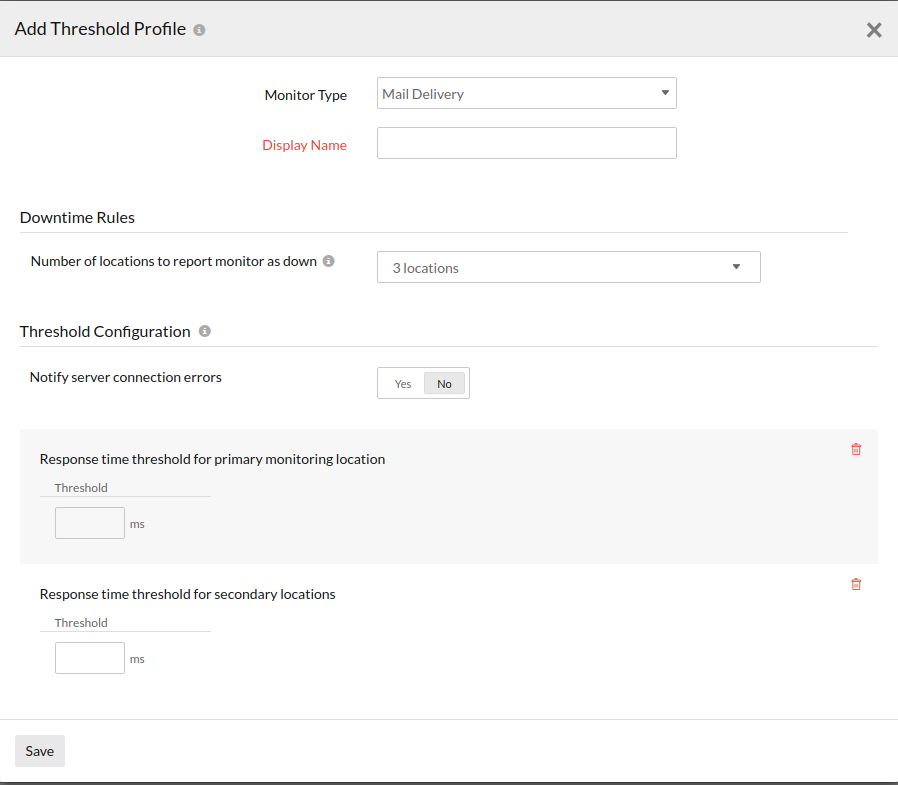

Click Add Threshold and Availability in Threshold and Availability screen.
Specify the following details for adding threshold and downtime rules for Mail Delivery Monitor:
- Monitor Type: Select Mail Delivery from the drop down list.
- Display Name: Provide a label for identification purpose.
- Number of locations to report monitor as down: Choose from the drop down to receive alert notification when the mail server is down from specified number of locations.

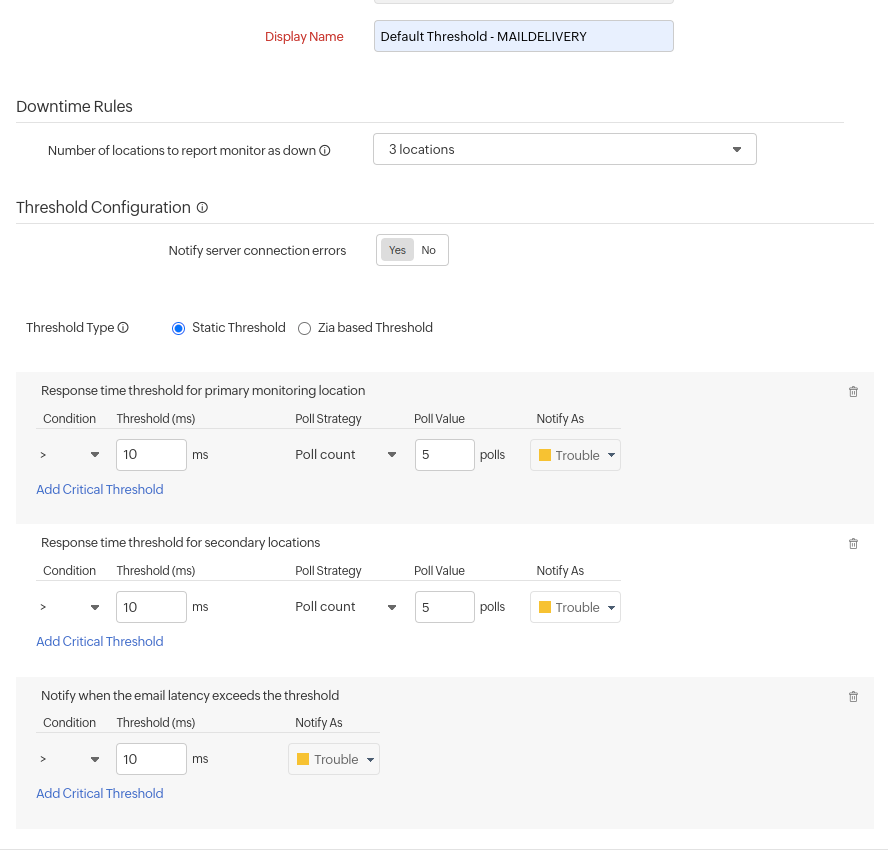

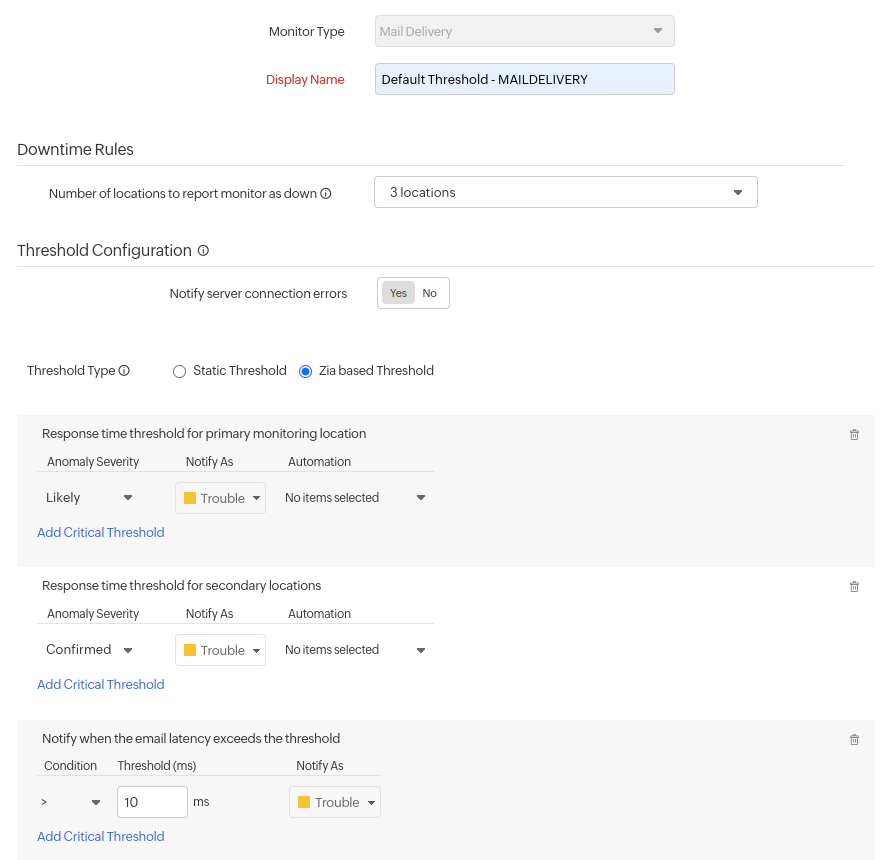

Specify the following details for Threshold Configuration:
- Notify server connection errors: Enable the toggle button to receive notification when there is connection error between the Site24x7 server and mail server.
- Response time threshold for primary monitoring location: Enter a value in milliseconds to get notified when the response time from primary location crosses the specified value.
- Response time threshold for secondary locations: Enter a value in milliseconds to get notified when the response time from secondary location crosses the specified value.
Click Save.
The threshold and availability profile created for Mail Delivery will be automatically listed in Threshold and Availability screen along with the others already created.

A default threshold and availability profile for Mail Delivery will be automatically listed in Threshold and Availability screen when the users for the first time click Admin> Inventory > Monitors > Add Monitor > Mail Delivery.

Edit Threshold and Availability for Mail Delivery

Click the profile which you want to edit.
Edit the parameters which needs to be changed in Add Threshold and Availability window.
Click Save.

Delete Threshold and Availability for Mail Delivery

Click the profile in the Threshold and Availability screen which needs to be deleted.
This will navigate to Add Threshold and Availability window.
Click Delete.
