Performance Metrics of POP Server Monitor

Interpret POP Server Monitor

Site24X7's POP Server Monitor checks for the availability of your POP Server and alerts when the response time crosses the configured threshold. To interpret the monitoring results of your POP Server, navigate to Home and click the appropriate POP Server Monitor in the home screen. The results will be displayed under two main headings; Response Time and Availability and Response Time by Location. Metrics are laid out in graphical and tabular layouts.

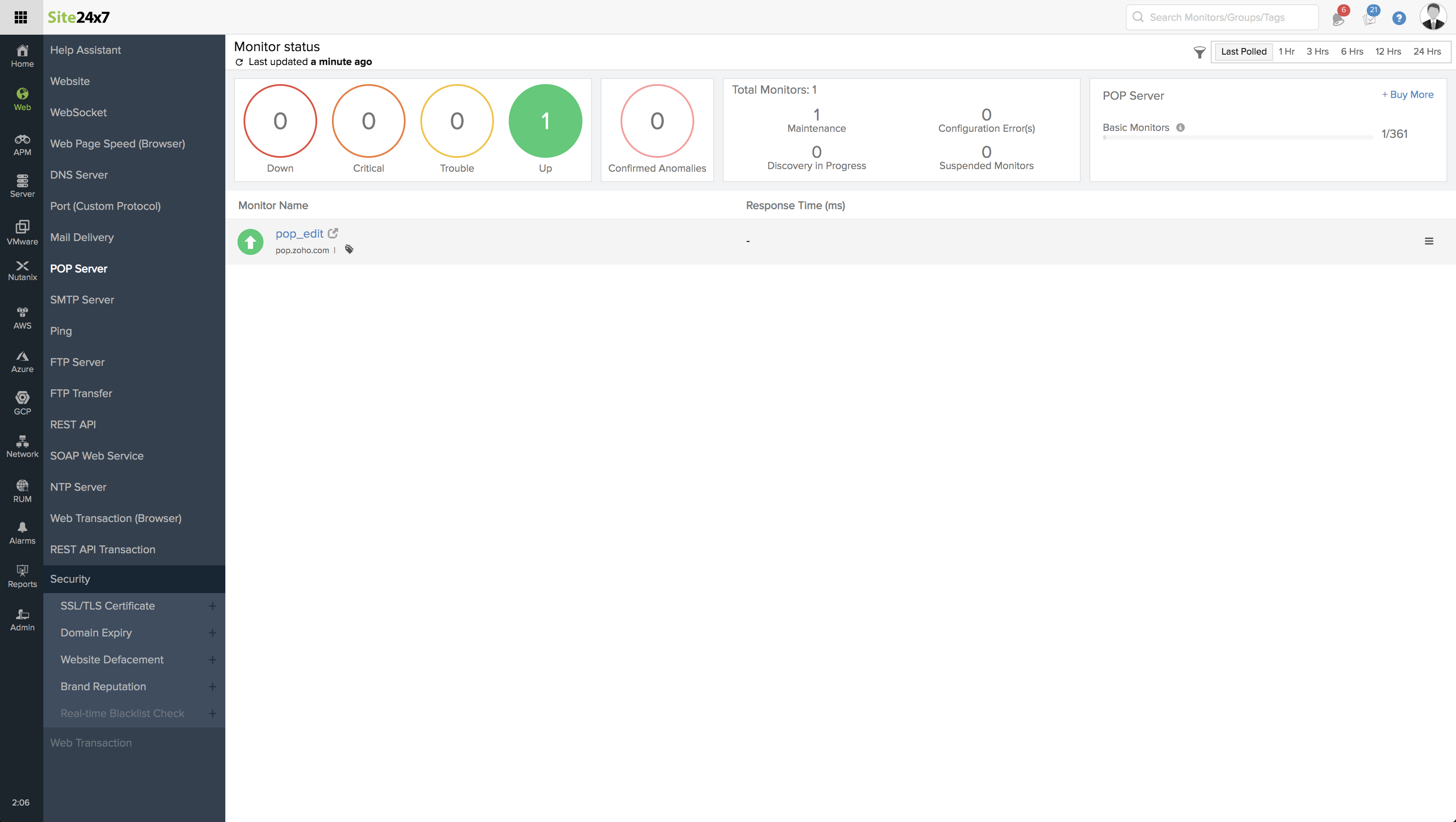

Site24x7's Web dashboard has a custom status banner, which identifies the various configured monitors by segregating them based on their operational status and state. You can also view the number of operational monitors and alert credits remaining in your account. By clicking the "+ Buy More" button, you can purchase additional monitors and alert credits. You can share the monitor details via an email. Email can be sent to only those verified users who have agreed to receive emails from Site24x7.

Events Timeline:

Events timeline widget records all the past events of your selected monitor for a selected time range. You can identify/decode various events from the past, which includes Down, Critical, Trouble, Maintenance, Suspended, or Anomalies. Each event are color coded for easy identification. Events can be drilled down to extract maximum data and facilitate easy troubleshooting. You can also track the actual outage period and the total outage duration during a specific block of time.

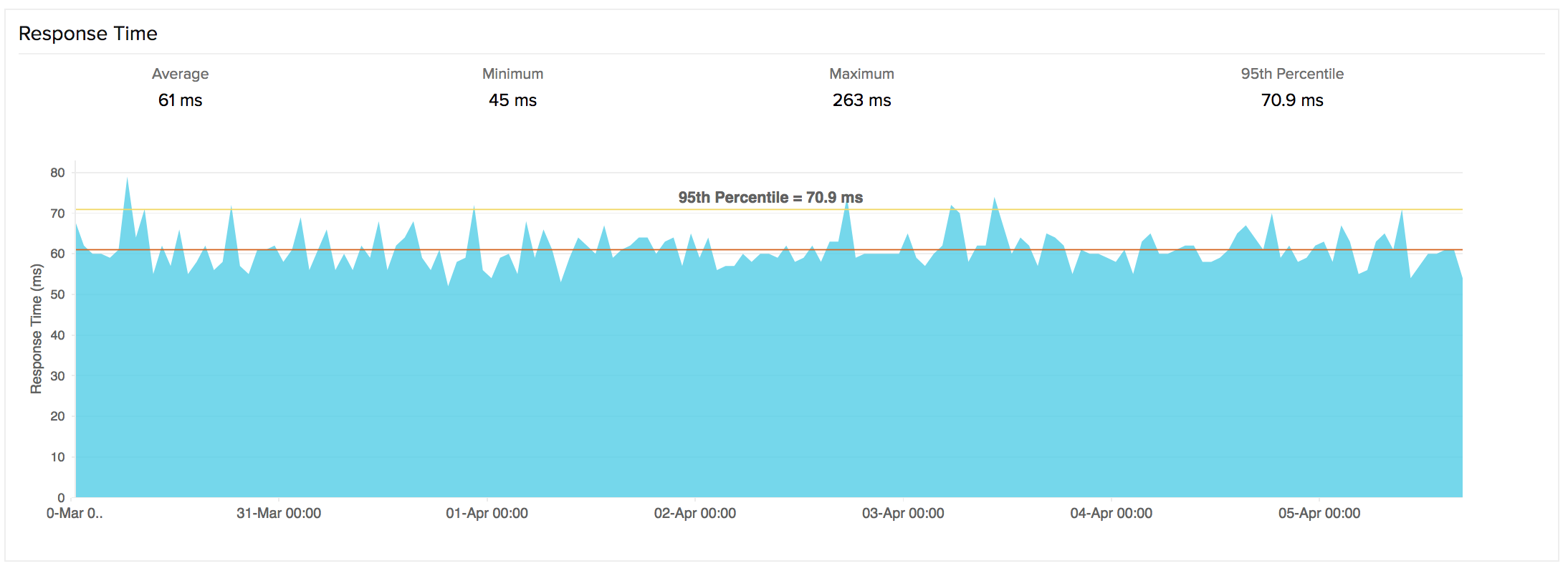

Response Time
Response Time indicates the total time in milliseconds needed to connect to POP Server over TCP port. The graph is computed by plotting time period against response time. Maximum, minimum and mean response time can be gauged from this graph. You can further filter out the three point, five point moving averages and also the 95 percentile by selecting the appropriate legends. The graph also lets you zoom in and isolate the exact data from the graphical spikes. You can also add specific notes to inform users about the various outages and maintenance activities.

Graphical Representation

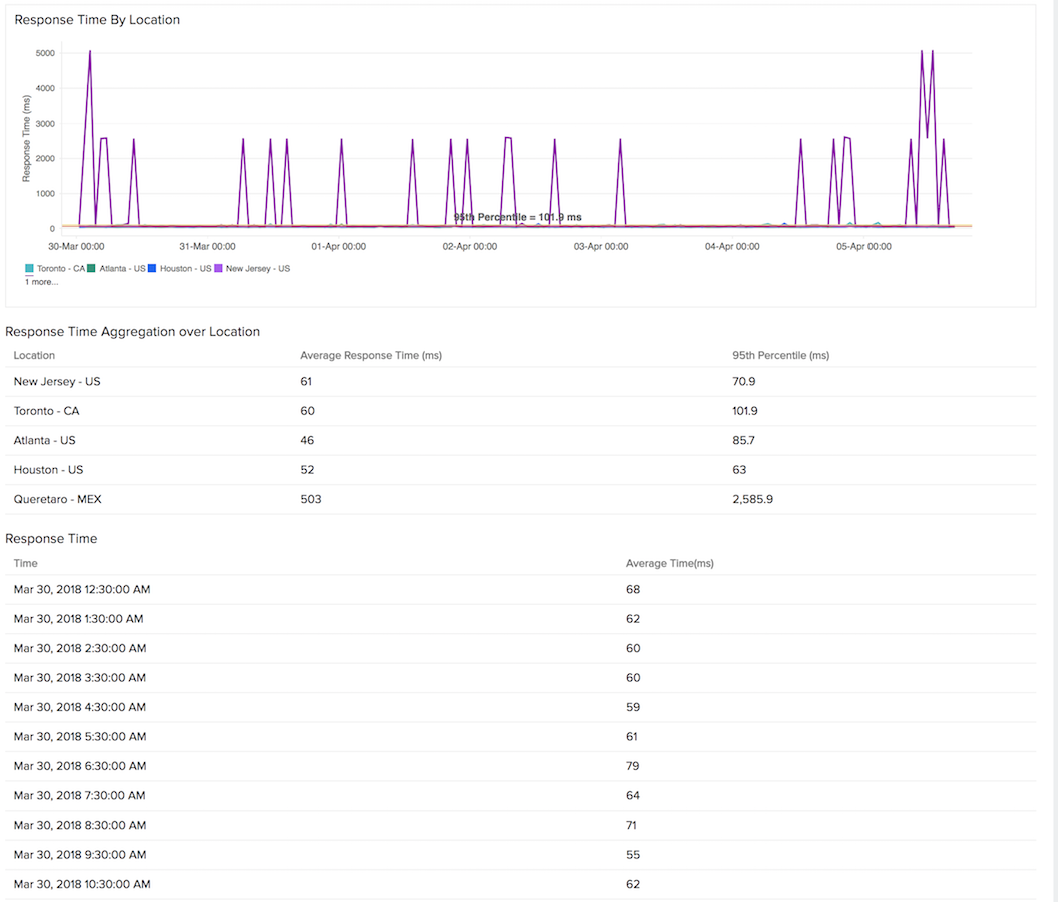

Response Time by Location
Response Time by Location graph shows the mean response time for each day or hour for each monitoring location. This graph can be employed to analyze the average/95th percentile response time of your monitors from different monitoring locations. Locations are identified using legends given with the graph. You can also filter out the location based reponse time by clicking on the legends.

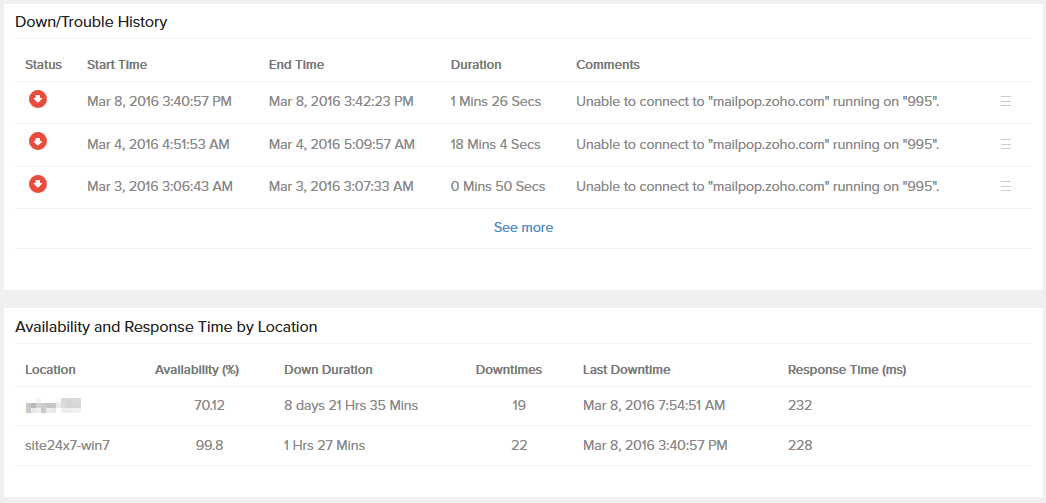

Down/Trouble History

It offers detailed insight into the trouble history of your monitor. You can view the status, the exact downtime, duration, and specific reason for the down status.

Outages

You can access the Outages tab in your monitor's details page to gather detailed insights on the various outage and maintenance downtimes. It provides you with sufficient information to troubleshoot issues. You'll also be able to access the root cause analysis reports for your various outages. On accessing the  icon of a listed monitor outage or maintenance, you'll be shown the options to:

• Mark as Maintenance: Mark an outage as Maintenance
• Mark as Downtime: Mark a Maintenance as Downtime
• Edit Comments: Add/Edit Comments
• Delete: Delete an Outage/Maintenance permanently

Root Cause Analysis (RCA) Report:

You can retrieve indepth root cause analysis report for your DOWN monitors after 150 seconds of the monitor reporting the outage. RCA Report gives basic details about your monitor, outage details, recheck details and reasons for the outage. Root Cause Analysis automatically generates a plethora of information to arrive at a definite conclusion as to what triggered a downtime. RCA intends to determine the root cause of specific downtime or performance issue. A normal RCA report will comprise of the following details:

• Checks from Primary location and re-checks from Secondary location.
• Ping Analysis
• DNS Analysis
• TCP Traceroute
• MTR Report
• MTR based Network Route
• Conclusion



Availability & Response Time by Location

Availability and Response Time of the POP Server from configured monitoring locations is depicted in a tabular format. The total availability percentage,  Response Time (ms) and down duration from each monitoring location can be inferred from this report.

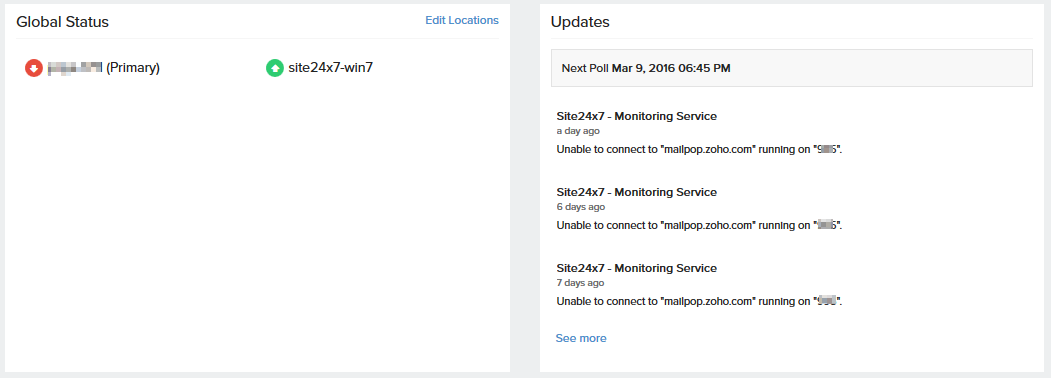

Global Status and Updates:

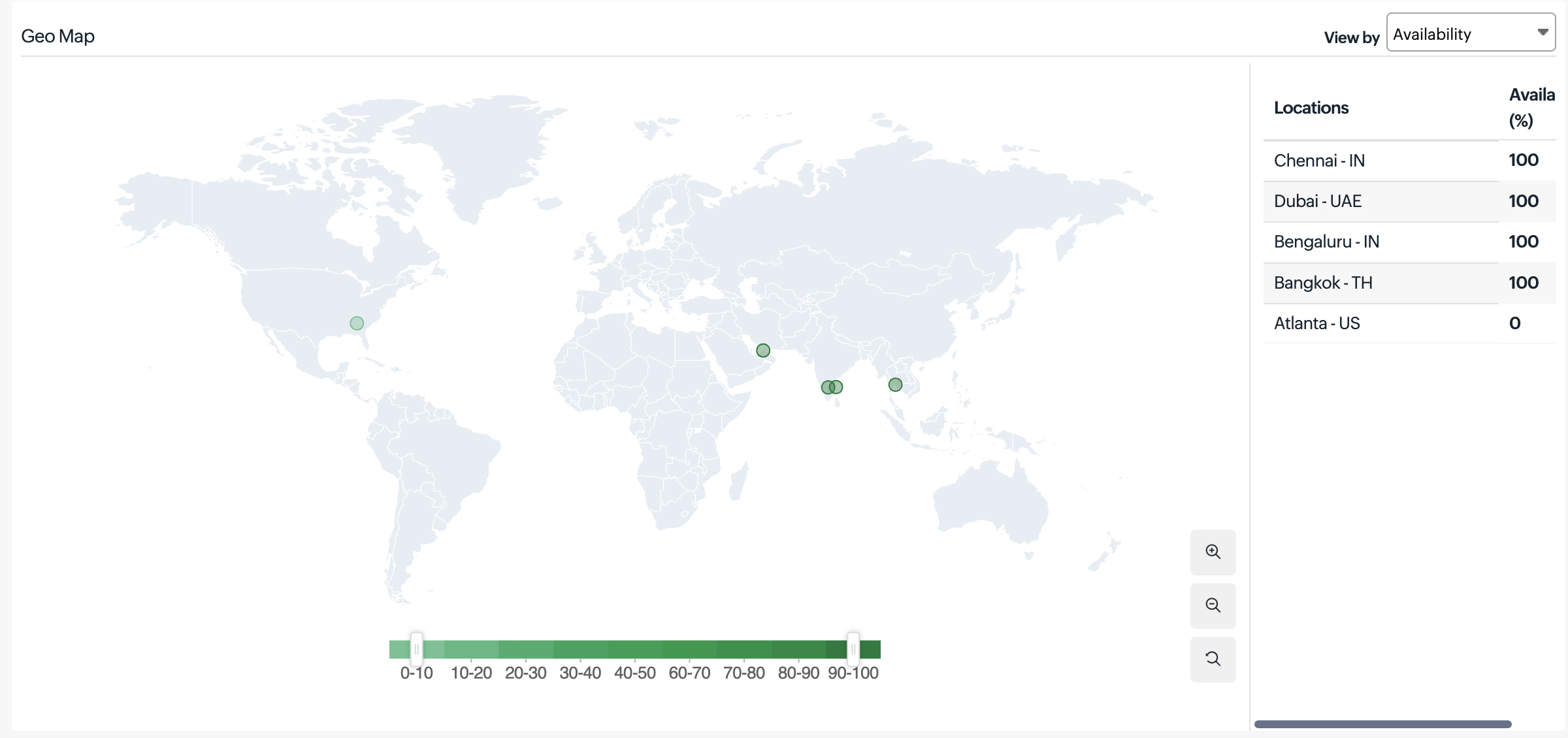

Get an instant peek into the actual real-time status of your monitor from the configured geographical locations. Additionally, you can also view the real-time data from the various poll cycles and it includes the outages and trouble alerts data.

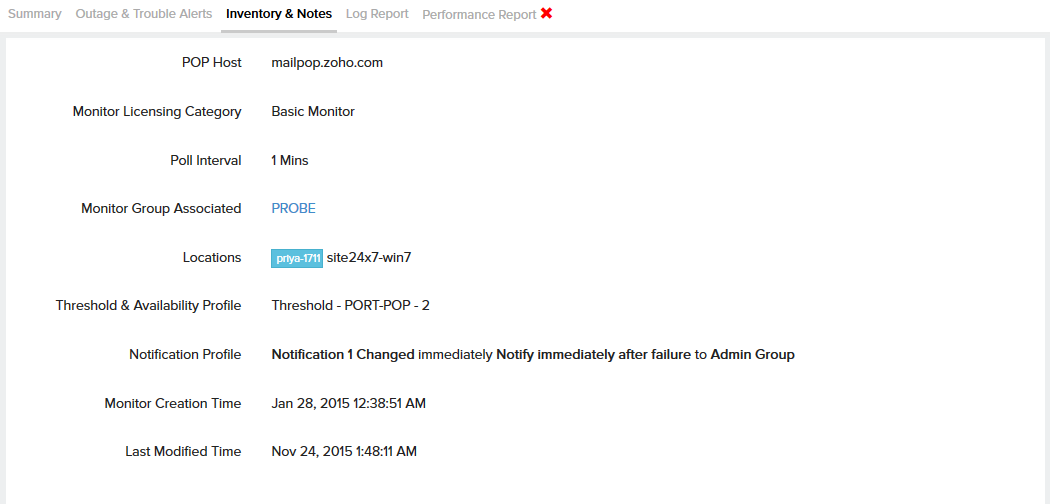

Inventory and Notes:

This section captures the basic monitor information and also its various configuration settings including polling locations, poll interval, licensing type, and more.

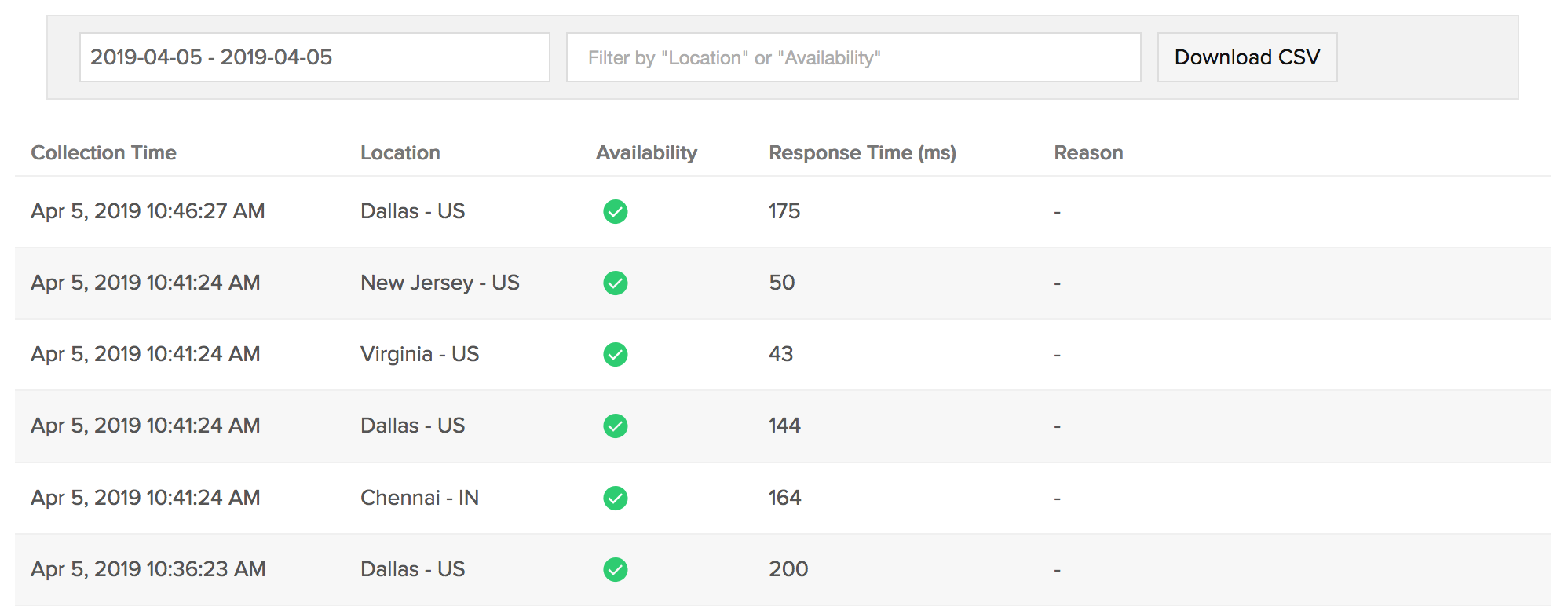

Log Report:

With our integrated log records for individual monitors, you can get an indepth knowledge about the various log details for the configured monitor, over a custom period. You can also filter the log based on location and availability. You have an option to download the log report in CSV format.
