Performance Metrics of OS X Server Monitor

Interpret OS X Server Monitoring Results

Install and add an OS X agent and monitor your OS X servers to measure important performance metrics including CPU, memory, disk utilization, network traffic and more from a customizable and unified console. Know how the agent sends complete performance metrics every 5 minutes to the Site24x7 data collector where users can view their reports via their browser.

Various parameters and metrics can be obtained by accessing the following tabs:

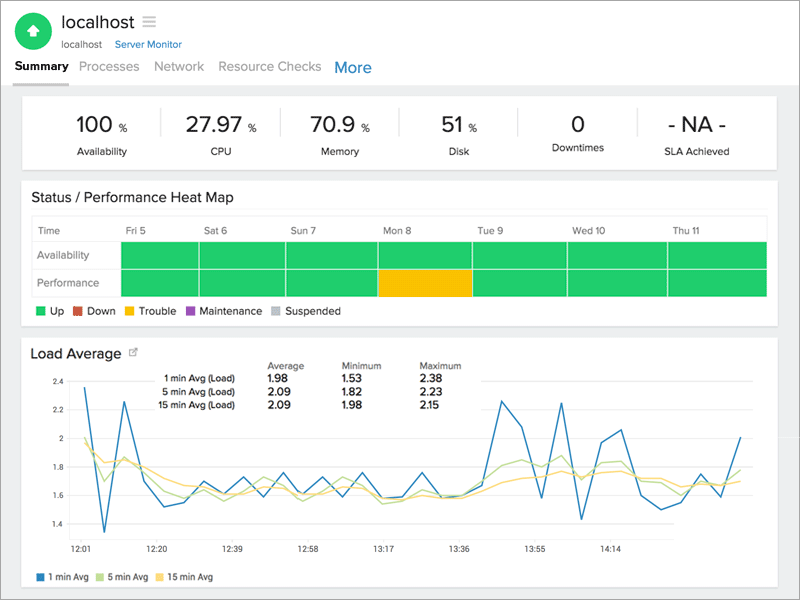

Device Snapshot:

In-depth analysis and study can be made for every parameter listed under the Device Snapshot tab. By clicking on the desired parameter, a detailed synopsis opens up in a new window, which can be sent as an email or exported as a PDF/CSV file. Reports can also be generated for a specific time period, by using the drop down on the top left corner of the page.

Memory Breakup/Memory Utilization


Disk Utilization


Asset Details:

Parameters Description
Host Name Name of the system
IP Address The IP address of the host machine
Operating System Name of the OS running in the instance
OS Architecture Specifies the underlying OS architecture - 32 bit or 64 bit
Installed Memory The physical memory of the server in MB
Processor Name and description of the processor

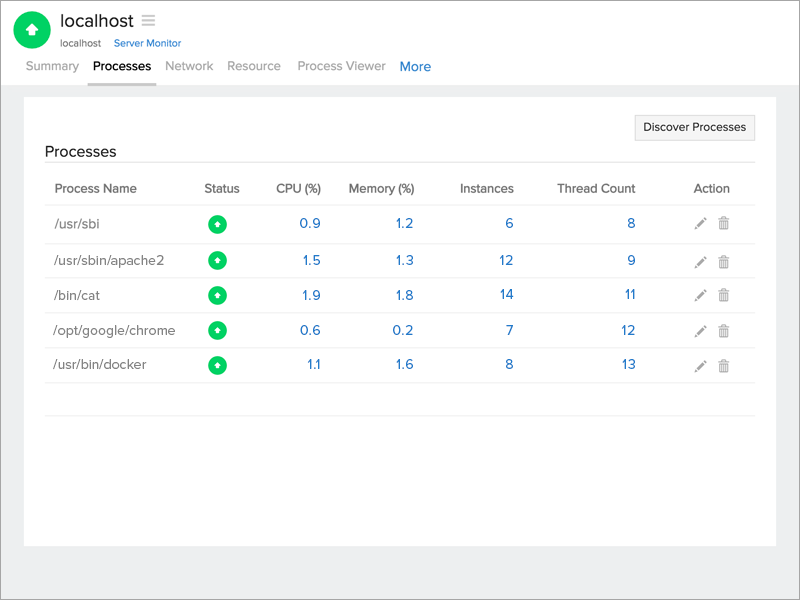

Processes:

The various processes associated with OS X are detailed under this section, along with the following metrics:

Parameters Description
Process Name Name of the process
Status Status of the process, it is up or down
CPU (%) The percentage of CPU used by a particular process
Memory (%) The percentage of memory used by a particular process
Instances The number of running instances in a process
Thread Count No of threads created by a process
Action Set thresholds or delete a particular process

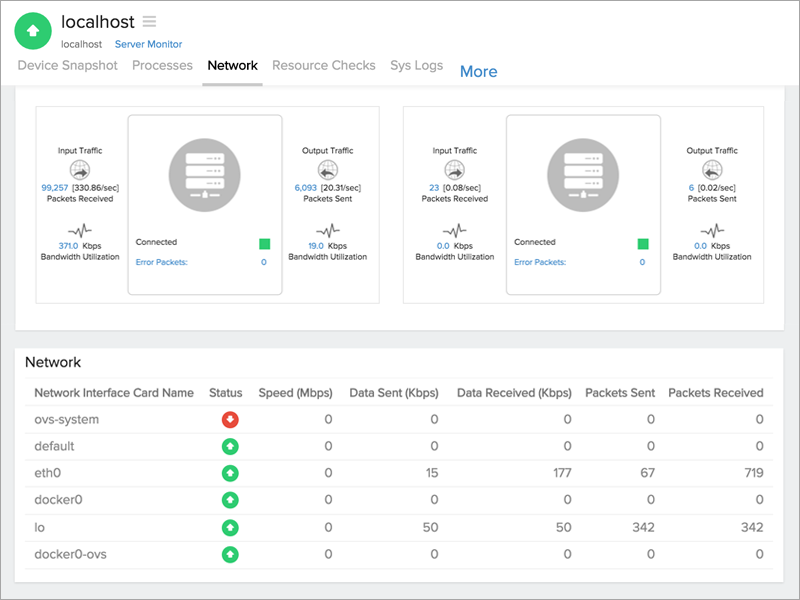

Network Statistics:

This section provides a complete description on the input and output traffic, in addition to the bandwidth utilization for both input and output traffic. Clicking on the traffic icons will generate individual reports on the error/discarded packets and packets traffic.



You can also set individual threshold values to the network interfaces added

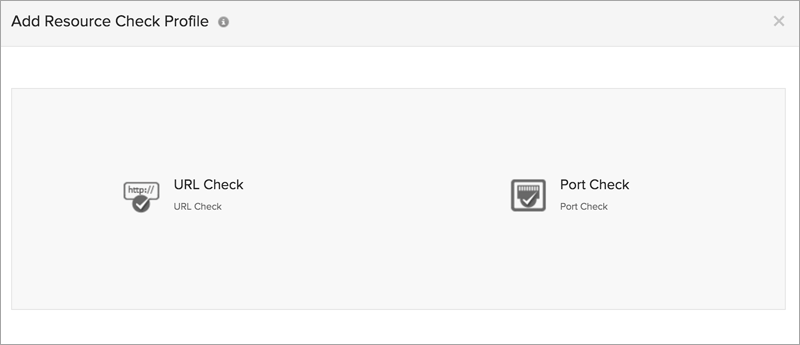

Resource Checks:
Gather inputs on url and port checks and configure thresholds to be alerted when a check fails. New/existing checks can be added/edited using the Edit Resource Check Profile option on the right corner of the page. To know more on how to add/edit/modify a resource check, click here.

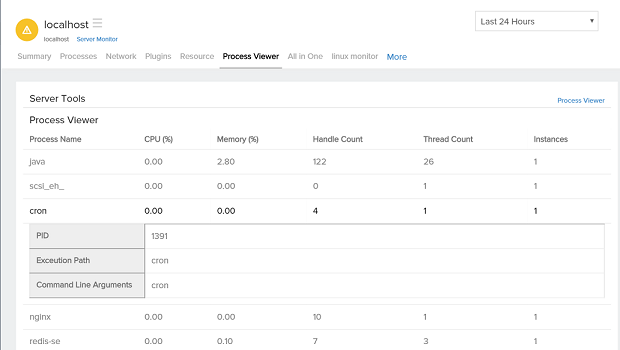

Process Viewer:
The various processes on the server monitor can be studied using the Process Viewer. Hovering the mouse on the process name lists their respective PID, Execution Path, and Command Line Arguments. Sort the processes based on CPU, memory handle, and thread count.

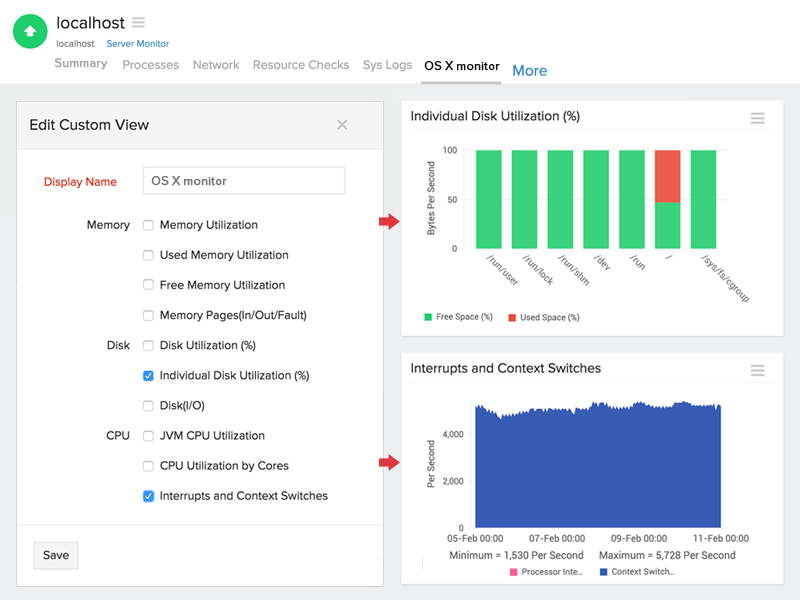

Customizable reports:
Users can create reports based on their preference by clicking on the desired metric and access the icon. Here, you can select the required parameters based on memory, disk, and CPU.
