Help EC2 CloudWatch and agent integration Connect existing EC2 CloudWatch monitor with the server monitor.

Integrate existing EC2 CloudWatch monitor with the server monitor

If you are currently monitoring EC2 instances via both our CloudWatch integration and standalone server agents, then you can go ahead and integrate the two separate monitors – EC2 CloudWatch monitor with the server monitor into one. Once done, all your agent based performance counters will be shown in the EC2 instance monitor UI and the server monitor will cease to exist. Combining instance metadata with the system agent metrics will solve a number of issues inherent in monitoring dynamic cloud environments with standalone server agents.

Agent version

The integration is only supported for the following versions of the agent.

  • Linux agent: version 16.1.0 and above
  • Windows agent: version 18.1.5 and above
Read our Kbase article to know more about how you can update the server agent to the latest version. You can also bulk update the agents at once, to know more click here.

One click integrate

Before you can integrate, you need to have both the monitors – an EC2 instance monitor and a existing server monitor, monitoring the same instance. To integrate:

  • Navigate to the EC2 instance monitor tab, here all your monitored EC2 instances will be displayed along with their unique id
  • Select the particular instance by clicking on it, you will be directed to the “EC2 summary page” for the said monitor

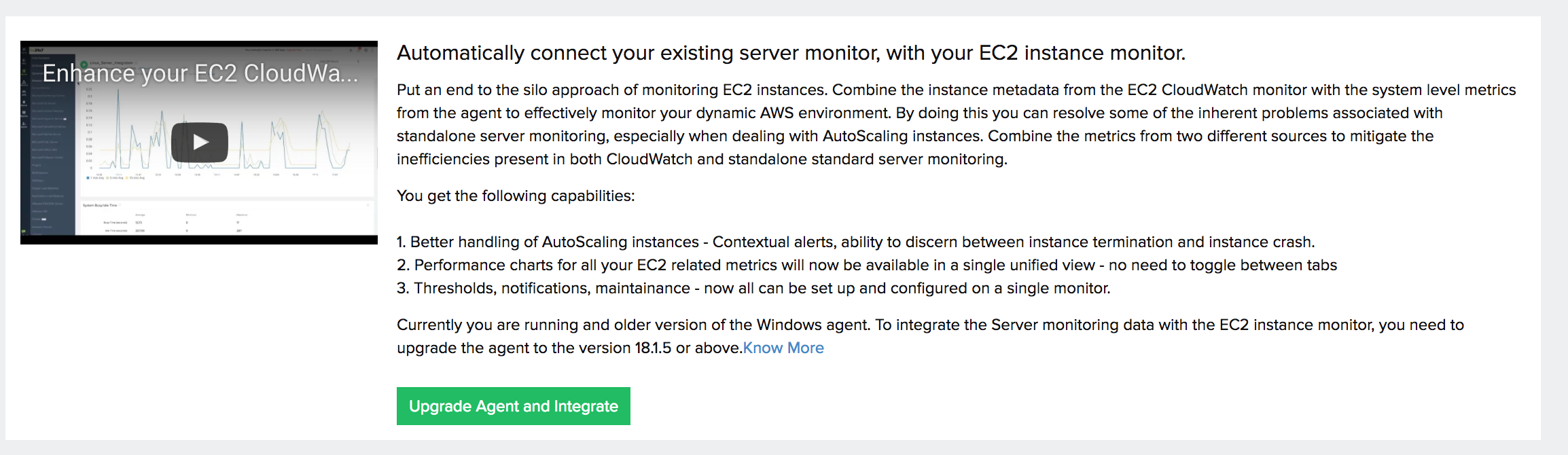

  • Scroll down the EC2 summary page to find the “Automatically connect your existing server monitor with your EC2 instance monitor” section, here click on integrate.

EC2-server-integrate-page

If you are running a older version of the agent, you will have to update the agent to a supported version to proceed.

Once the integration is done, all your configuration data (thresholds, notifications, alerts groups) and server agent metrics will be ported to the newly integrated EC2 instance monitor. So you don’t have to worry about reconfiguring or loosing monitoring data.

During integration the past outage details from the server monitor will not be ported to the newly integrated EC2 monitor. If you require the old outages from server to be carried over, please get in touch with us.

Licensing

When you integrate your existing server monitor, with the EC2 instance CloudWatch monitor, it will still be considered as two basic monitors. For example, if you are using 12 basic monitors out of the 30 active monitors available, 11 will be EC2 instances and one will be an integrated monitor. You can view this by hovering on the tool tip of Basic Monitors in the AWS > Monitor Status page.
