Agent Performance Report

The target web application is set to receive 300 requests per minute.

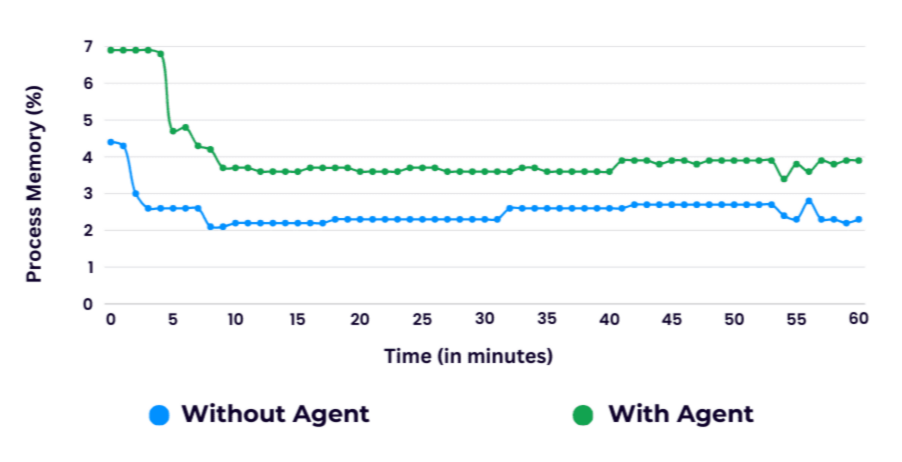

APM Insight java agent is configured to track all transactions (web, non-web). The agent consumes 35 to 40 MB to track all the transactions getting served by the Application Server.
On increasing the throughput to the server to 600 requests per minute, the APM Insight java agent consumes 80 to 100 MB, tracking all the transactions served by the application server.
In case of Application servers serving huge requests, memory consumption by the APM Insight java agent can be reduced (if needed) by configuring the sampling factor.

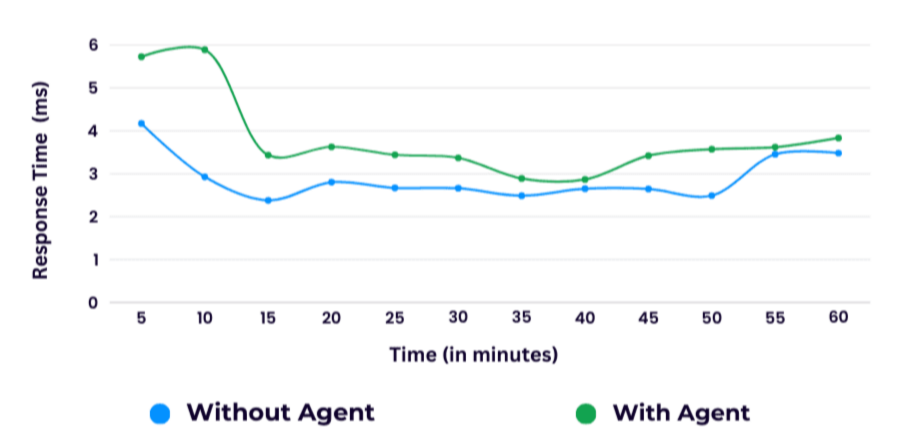

Response time overload added by the APM Insight java agent is directly proportional to the number of method calls being instrumented.
If the agent is set to track all the method calls happening in the transaction, the maximum response time overload will be 7% of the actual response time. On Minimal, Agent consumes 1% of the actual response time.

The communication between APM Insight agent and Site24x7 servers is of one-way HTTPS communication. The agent sends the performance metrics to Site24x7 server (plusinsight.site24x7.com) every one minute.
There will be 2 requests per minute from the agent to our Site24x7 servers.
1. /arh/data - carries metric data of all the transactions performed on the server, which will consume at the maximum of 100 KB.
2. /arh/trace - carries traces of every transaction which consumed response time larger than the configured threshold level. A complete snapshot of the transactions will be sent. This can be used for better debugging. Maximum data size sent is around 4MB.
